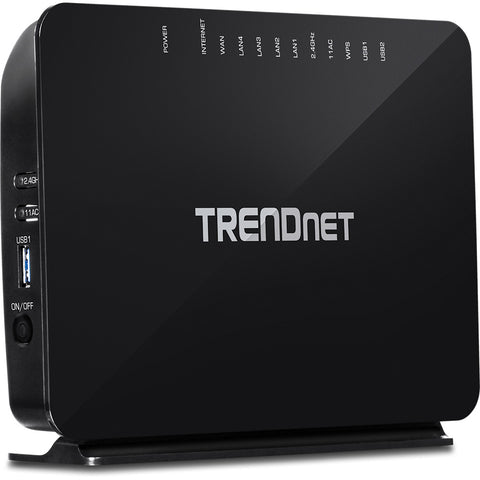

The TRENDnet TEW-816DRM AC750 Wireless VDSL2/ADSL2+ Modem Router offers a combination high performance modem for internet access and a powerful wireless AC750 router.

The built-in modem supports the latest ADSL2+ and VDSL2 standards for downstream speeds of up to 200 Mbps*. Wireless AC750 produces concurrent high speed 433 Mbps Wireless AC and 300 Mbps Wireless N networks. Use the two USB and four Ethernet ports to share content and devices across the network.

FEATURES:

  • Combination high performance modem and wireless router
  • Compatible with VDSL2/ADSL2+ ISP networks
  • VDSL2: downstream throughput of up to 200 Mbps
  • Wireless AC750: 433 Mbps AC + 300 Mbps N bands
  • Pre-encrypted wireless for your convenience
  • Two USB and four Ethernet ports

TEW-816DRM Comparison ChartTEW-816DRM Diagram

VDSL/ADSL Line Interface
  • ADSL: ANSI T1.413 Issue2, G.992.1 (G.dmt, Annex A, and Annex B), G.992.2 (G.lite)
  • ADSL2: G.992.3 (G.bis/ADSL2)
  • ADSL2+: G.992.5 (Annex A, B, I, J, M, and L)
  • ITU G.994.1 (G.hs)
  • ITU-T: G.993.2 VDSL2: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, profile G.vector
  • ATM and PTM
  • G.INP
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300 Mbps)
  • IEEE 802.11ac (up to 433 Mbps)

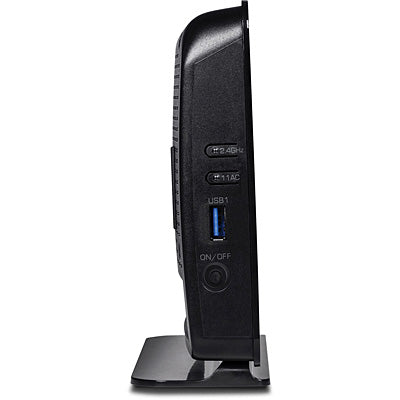

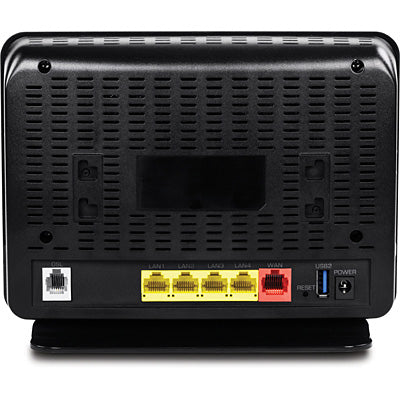

Hardware Interface
  • 4 x 10/100 Mbps LAN ports
  • 1 x Gigabit Mbps WAN port
  • 1 x RJ-11 WAN port
  • 2 x USB 2.0 port
  • WPS/Wireless 2.4 GHz on/off button
  • WPS/Wireless 5 GHz on/off button
  • Power on/off button
  • Reset button
  • LED indicators
Special Features
  • TR-069 remote management support
  • Pre-encrypted wireless network
  • Port mapping
  • 3G WAN backup
  • IPv6
  • Wireless WDS support
  • SAMBA server
  • Dyn DNS support for: DynDNS.org and NO-IP.com
  • Diagnostics: DSL test, Traceroute test, and Ping test
Access Control
  • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
  • Firewall: NAT, ALG, Port Trigger, SPI, Virtual Server, Special Applications, DMZ Host, PPTP/L2TP/IPsec VPN Passthrough, Multicast Passthrough, IGMP, MLD, allow/deny ping request from internet
  • SNMP v1 and v2c
  • Guest Networks: Create up to 3 guest networks per band
  • Parental (Access) Controls: MAC, URL, IP Filter
  • DoS protection
  • Packet filter
Quality of Service
  • DCSP
  • 802.1p
Internet Connection Types
  • Dynamic IP (DHCP)
  • Static IP (Fixed)
  • ATM/PTM
  • PPPoE (Dynamic IP/Static IP)
  • PPPoA (Dynamic IP/Static IP)
  • IPoA
  • MAC Encapsulation Routing (IPoEoA/MER)
  • Bridge (RFC-1483)
Management/Monitoring
  • Local/remote web based management
  • Remote management (FTP, HTTP, ICMP, SNMP, SSH, Telnet, TFTP)
  • TR-069 remote management
  • Upgrade firmware
  • Backup/restore configuration
  • Logging – internal/remote
  • Reboot
  • Restore to factory defaults
  • Ping test
  • Traceroute
Routing
  • Static
  • Dynamic (RIP v1/2)
Frequency
  • 5 GHz: FCC 5.180 – 5.240 + 5.745 – 5.825; ETSI: 5.180 – 5.240 GHz
  • 2.4 GHz: FCC 2.412 – 2.472; ETSI: 2.412 – 2.462 GHz
Modulation
  • 802.11b: CCK, DQPSK, DBPSK
  • 802.11a/g/n: BPSK, QPSK, 16 QAM, 64 QAM sub carrier with OFDM
  • 802.11ac: BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM with OFDM
Antenna Gain
  • 5 GHz: 3 dBi (max.) internal
  • 2.4 GHz: 2 dBi (max.) internal
Wireless Output Power/Receiving Sensitivity
  • 802.11a: FCC: 20 dBm, CE: 22 dBm (max.)/-73 dBm (typical) @ 54 Mbps
  • 802.11b: FCC: 24 dBm, CE: 13 dBm (max.)/-84 dBm (typical) @ 11 Mbps
  • 802.11g: FCC: 22 dBm, CE: 14 dBm (max.)/-70 dBm (typical) @ 54 Mbps
  • 802.11n (2.4 GHz): FCC: 22 dBm, CE: 14 dBm (max.)/-66 dBm (typical) @ 300 Mbps
  • 802.11n (5 GHz): FCC: 20 dBm, CE: 22 dBm (max.)/-66 dBm (typical) @ 300 Mbps
  • 802.11ac: FCC: 18 dBm, CE: 21 dBm (max.)/-56 dBm (typical) @ 433 Mbps
Wireless Channel
  • 5 GHz: FCC: 36, 40, 44, 48, 149, 159, 157, 161, and 165; CE: 36, 40, 44, 48
  • 2.4 GHz: FCC: 1 – 11; CE: 1 - 13
Power
  • Input: 100 – 240 V AC, 50 - 60 Hz, 0.5 A
  • Output: 12 V DC, 1.5 A external power adapter
  • Consumption: 14 Watts (max.)
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 95 % non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 190 x 146 x 55 mm (7.5 x 5.7 x 2.2 in.)
Weight
  • 323 g (11.4 oz.)
Warranty
  • 3 year limited



Part Number Product Description
TEW-816DRM AC750 VDSL2 ADSL2+ Wireless Modem Router
